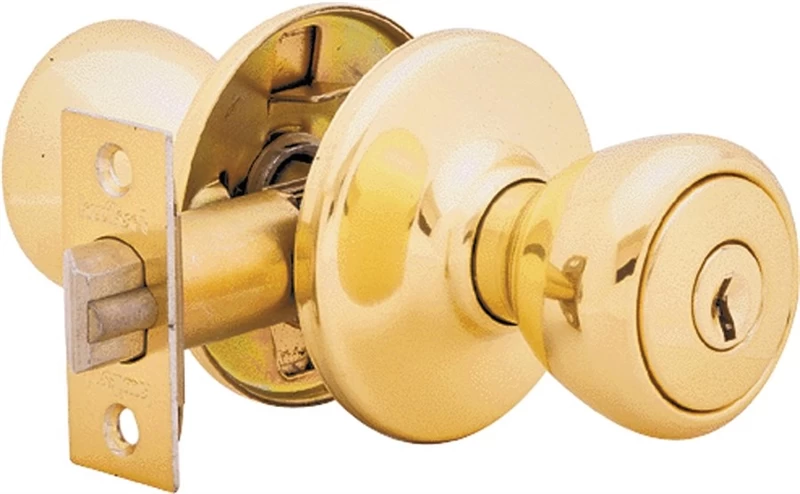

For keyed exterior doors. Both bell-shaped knobs lock or unlock by key outside or turnbutton inside. DOOR PREP: 2-1/8 in Cross Bore, 1 in Edge Bore, 1 in x 2-1/4 in Latch Face. BACKSET: 2-3/8 in standard and adjustable 2-3/8 in and 2-3/4 in optional. DOOR THICKNESS: 1-3/8 in to 1-3/4 in . CYLINDER: 5-pin. FACEPLATES: 1 in x 2-1/4 in round corner. STRIKES: 2-1/4 in full lip round corner. BOLT: 1/2 in throw. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 3.
General
| Backset | 2-3/8 – 2-3/4 in |
|---|---|
| Crossbore Size | 2-1/8 in |
| Dial Location | Left or Right Hand |
| Faceplate Dimensions | 1 x 2-1/4 in |
| Finish | Polished Brass |
| Grade | 3 |
| Includes | 1/2 in Throw Bolt |
| Key Number | K6 |
| Key Type | Keyed Alike |
| Material | Metal |
| Mounting Type | Screw |
| Number of Keys | 2 |
| Number of Pins | 5 |
| Overall Length | 2-1/2 in |
| Pin Type | Cylinder |
| Series | Tylo 400 |
| Strike | 2-1/4 in Full Lip Round Corner |
| Suitable for Use With | 1-3/8 – 1-3/4 in Thick Doors |
| Usage | Use on Exterior Doors Where Keyed Entry and Security is Needed |
Dimensions
| Diameter | 1-7/8 in |
|---|---|
| Projection | 2-1/2 in |
| Width | 2-5/8 in |
Label Information
| Certification, Codes, Standards | ANSI/BHMA Grade 3 |
|---|
